In Stock Factory Industrial ATC / High Precision
CNC Machining Centre with Automatic Tool Changer, PMSK EA48
12-Position Tool Magazine
High-Precision Servo System
Direct Factory Import

CNC Machining Centres / Routers (Nesting) • PMSK

CNC Machining Centre with Automatic Tool Changer, PMSK EA48

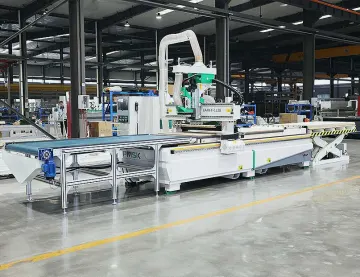

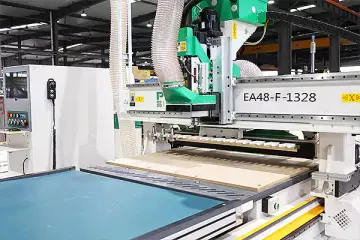

The PMSK EA48 model is a state-of-the-art CNC machining centre, equipped with an inline automatic tool changer (ATC) system, optimised for furniture production and woodworking. With a rapid traverse speed of 65m/min and a 9kW main spindle, this machine is the central pillar for factories requiring high efficiency, consistent precision, and minimal setup times between cutting, milling, and engraving processes.
Through AGS Factory Bridge, the acquisition of this industrial equipment becomes a simplified and transparent process. We eliminate import barriers by fully managing logistics, customs clearance, and delivery, ensuring you receive PMSK technology directly from the manufacturer at the most competitive market prices, with dedicated technical support included.

Working Dimensions
1220 × 2800 mm
Spindle Power
9KW / 24000 RPM
Traverse Speed
65 m/min
Machine Weight
2800 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • High-Efficiency Linear ATC System

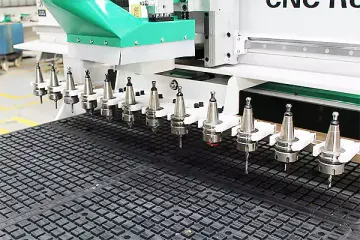

    Equipped with a 12-tool rapid-change magazine, the EA48 minimises downtime, allowing for complex milling and cutting processes without manual intervention.

  • Industrial Stability and Precision

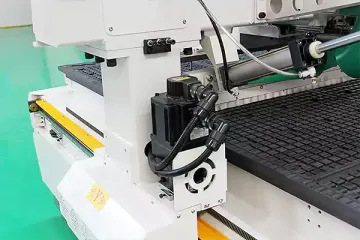

    The robust structure and servo drive system ensure high precision at high speeds, making it ideal for series production of furniture panels.

  • Multi-Zone Vacuum Table

    The vacuum adsorption worktable, divided into multiple zones, allows for firm and instant clamping of materials of various sizes, optimising the workflow.

  • Complete AGS Logistics

    We handle import, customs clearance, and delivery directly to your location, eliminating intermediaries and hidden costs for maximum return on investment.

Detailed Technical Specifications

Parameter Value
Product Model EA48
Working Dimensions 1220×2800mm
Table Structure Multi-zone vacuum absorption table
Rapid Traverse Speed 65m/min
Required Air Pressure ≥ 6.5Kgf/cm
Transmission Type X, Y Axes on rack and pinion, Z Axis on ball screw
Working Voltage AC380/3PH/50Hz
Drive System Servo motors (Servo drive)
Total Power 26KW
Spindle Parameters 9KW / 24000 RPM

*Technical data may be subject to minor changes depending on the final configuration chosen.
