In Stock Factory Electric / Șenile / Heavy Duty
YOFITECH FZPT0810LD Electric Tracked Scissor Lift, 9.8 m
4.0kW AC Electric Drive
450kg Platform Capacity
Direct Import via AGS Bridge

Aerial Work Platforms (AWPs) • YOFITECH

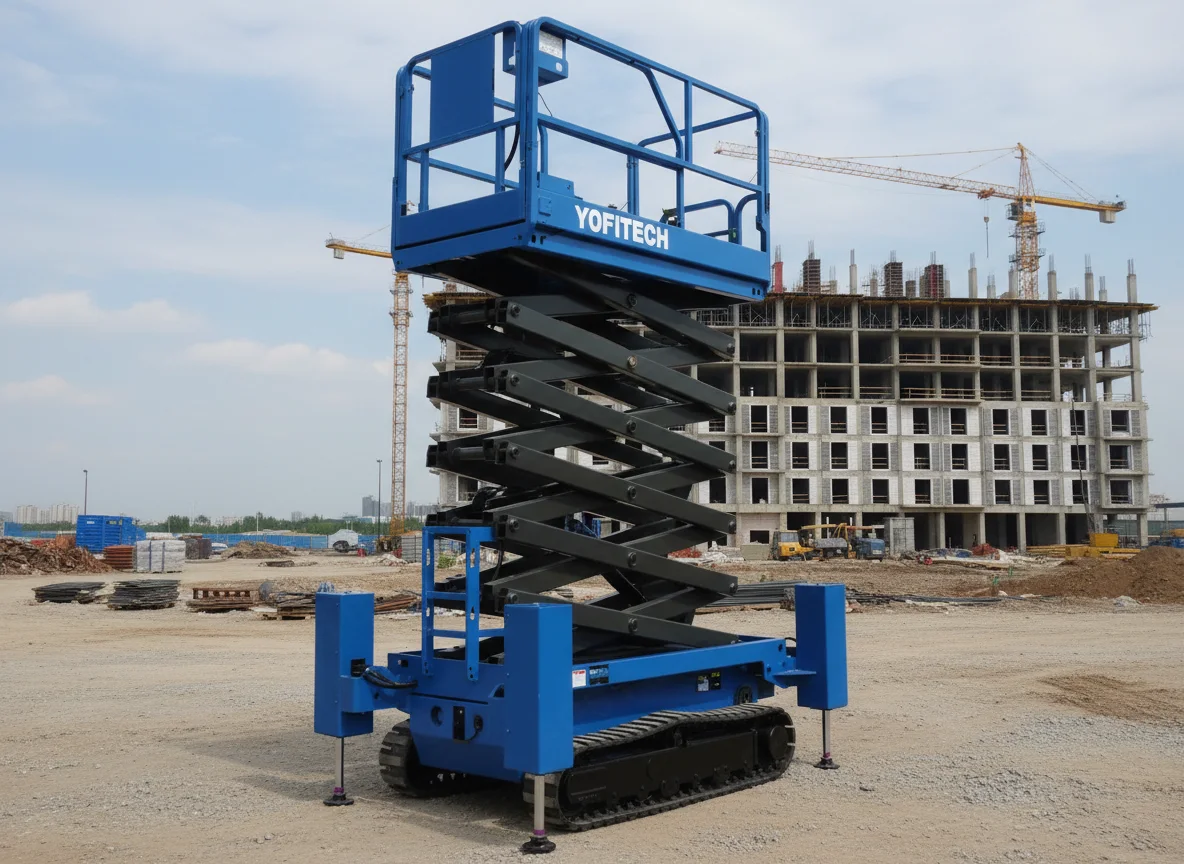

YOFITECH FZPT0810LD Electric Tracked Scissor Lift, 9.8 m

The YOFITECH FZPT0810LD model represents the top of the range in electric tracked scissor lifts, specifically designed to offer superior stability and manoeuvrability on various work surfaces. With a working height of 9.8 metres and an impressive capacity of 450 kg, this machine is equipped with an advanced Battery Management System (BMS) and high-efficiency DC motors, ensuring extended work cycles and minimal operating costs. Its robust design, combined with IP67 protection for electrical components and the ability to operate at extreme temperatures down to -20°C (with optional Li-ion batteries), makes the FZPT0810LD the ideal solution for complex industrial projects. AGS Factory Bridge provides you with direct access to cutting-edge YOFITECH technology, offering complete technical support and integrated logistics for your fleet.

Working height
9.8 m
Maximum capacity
450 kg
Platform dimensions
2.27m x 1.12m
Machine weight
3500 kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Zero-Turn Manoeuvrability on Tracks

    Thanks to the track drive system and the 0m turning radius (zero turn), the lift can rotate on the spot, making it ideal for narrow spaces and difficult terrain where wheeled machinery cannot operate.

  • Durability and IP67 Protection

    The electrical system and critical components are protected against water and dust ingress (IP67 standard), significantly reducing downtime and maintenance costs in harsh working environments.

  • Advanced Energy Efficiency

    Equipped with a 4.5kW lift motor and 4.0kW drive motors, the lift optimizes energy consumption, offering extended working autonomy and high performance on inclines up to 25%.

  • Complete AGS Logistics

    We handle the entire process: from direct factory purchase to customs clearance and delivery directly to your location, guaranteeing the best import price.

Detailed Technical Specifications

Parameter Value
Model FZPT0810LD
Maximum working height 9.8 m
Maximum platform height 7.8 m
Platform capacity 450 kg
Platform extension capacity 113 kg
Maximum number of workers 3
Platform dimensions (L x W) 2.27 m x 1.12 m
Platform extension 0.90 m
Turning radius 0 m (Zero Turn)
Travel speed (stowed) 2.4 km/h

*Technical data may be subject to minor changes depending on the final configuration chosen.
