In Stock Factory Diesel Heavy Duty
SOCMA HNF-160S Diesel Forklift, 16Tone
Cummins/Yuchai Engine
16 Ton Lifting Capacity
Direct China Import via AGS

Heavy Duty Forklifts (16T - 50T) • SOCMA

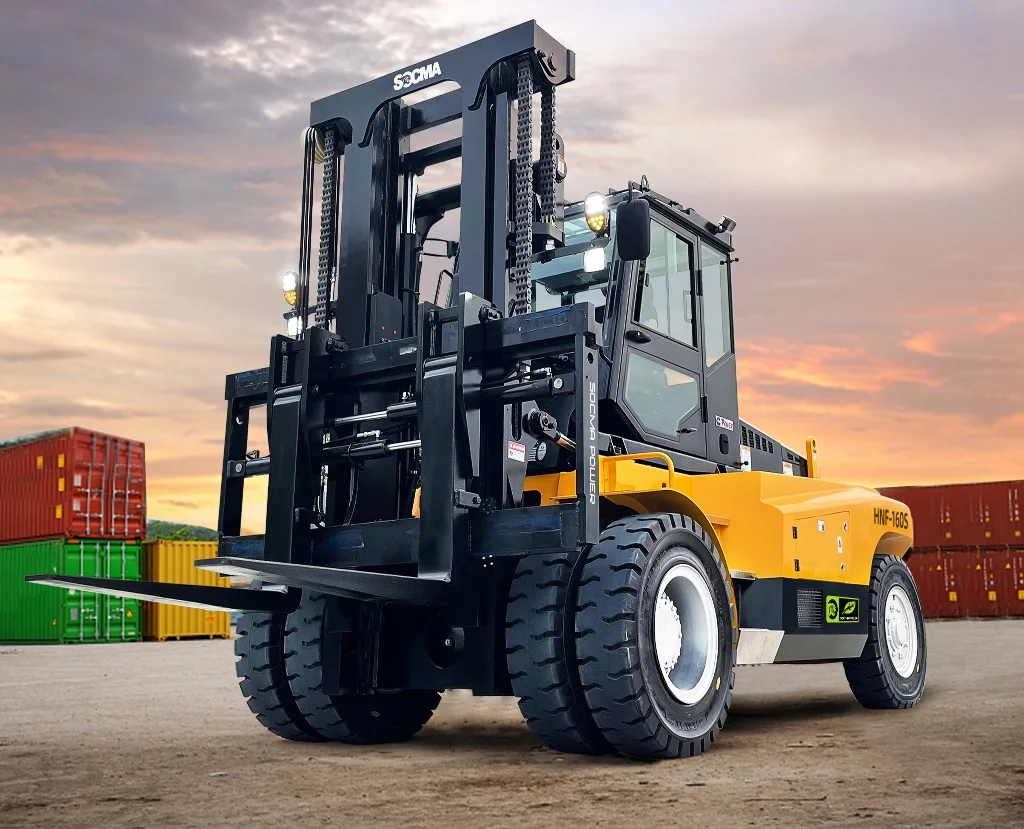

SOCMA HNF-160S Diesel Forklift, 16Tone

The SOCMA HNF-160S forklift represents the high-end range for handling extremely heavy loads, designed to excel in demanding industrial environments such as ports, steel mills, and large logistics centres. With a nominal capacity of 16 tonnes and a robust chassis, this machine offers maximum stability and extended service life, transforming any complex lifting operation into a safe and efficient task.
Through AGS Factory Bridge, you have access to advanced SOCMA technology, benefiting from high-performance powertrains from renowned manufacturers like Cummins or Yuchai. The ergonomic cabin design ensures increased operator comfort and precise control, reducing fatigue and boosting productivity throughout the workday.

Lifting Capacity
16,000 kg
Load Centre
600 mm
Lifting Height
3,000 mm (Standard)
Engine
Yuchai/Cummins

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Top Industrial Performance

    Equipped with an optimised hydraulic system and high-power engines, the HNF-160S handles 16-tonne loads with a travel speed of up to 26 km/h.

  • Robust and Reliable Construction

    The oversized chassis and reinforced mast are designed to withstand high torsional forces, ensuring load stability even at maximum heights.

  • Operational Efficiency

    The hydraulic disc braking system and optimised 2/2 transmission ensure smooth control and high manoeuvrability within a 5500 mm turning radius.

  • Complete AGS Logistics

    We handle the entire import process, including customs clearance and direct delivery to your location, ensuring a worry-free experience.

Detailed Technical Specifications

Parameter Value
Model HNF-160S
Lifting Capacity 16,000 kg
Load Centre 600 mm
Own Weight 19,500 kg
Travelling Speed (with/without load) 23 / 26 km/h
Overall Dimensions (Length with forks x Width) 6355 x 2400 mm
Min. Turning Radius 5500 mm
Mast Tilt (forward/backward) 6° / 12°
Front/Rear Tyres 12.00-20-18PR / 11.00-20-18PR
Braking System Hydraulic caliper disc

*Technical data may be subject to minor changes depending on the final configuration chosen.
