In Stock Factory Industrial Woodworking
4-Sided Door Sizing CNC Machine, PMSK M5.4
4-Sided Cutting
Pinmai CNC Control
Direct Factory Import

CNC Machining Centres for Doors and Windows • PMSK

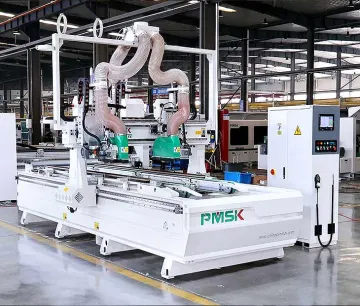

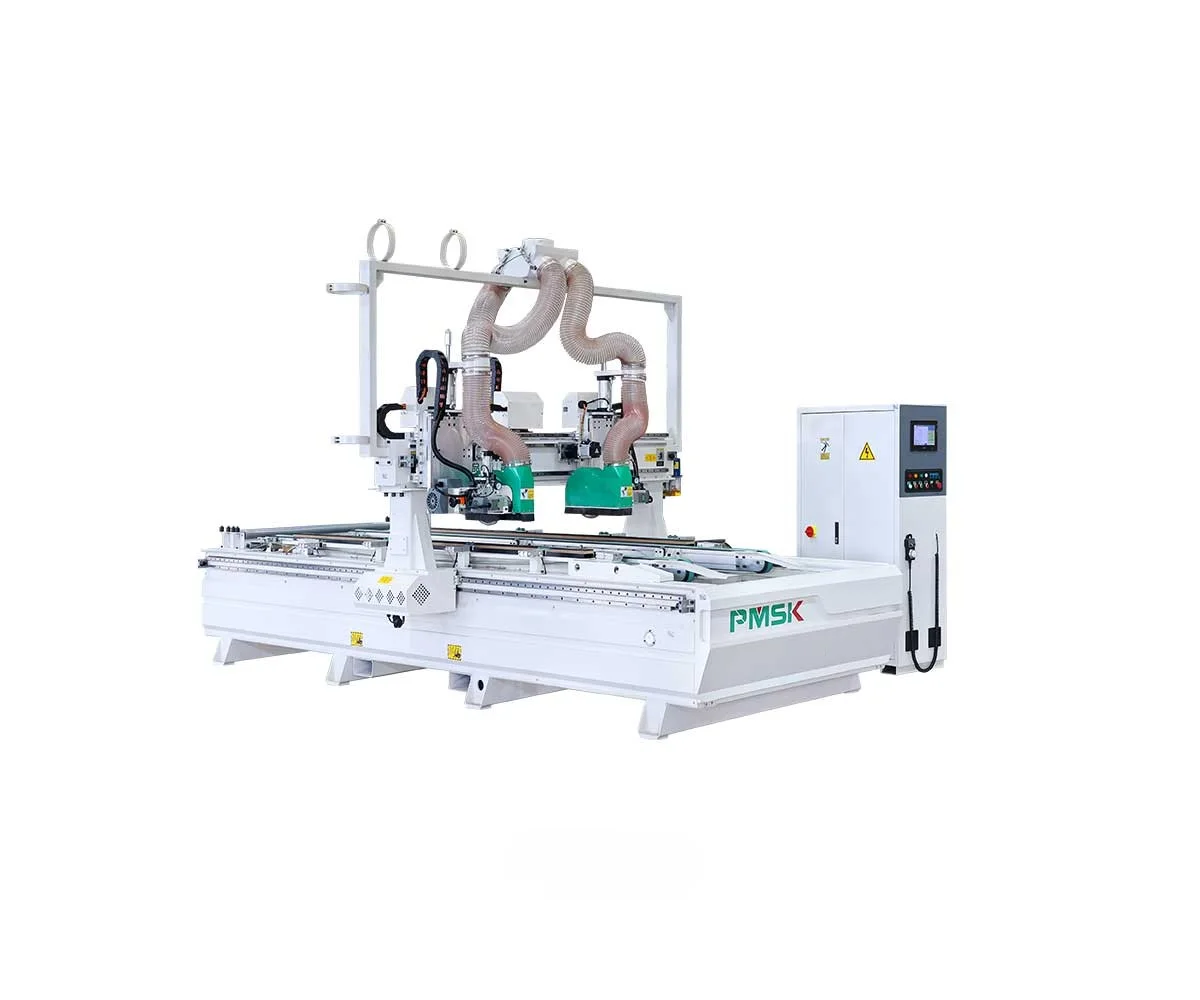

4-Sided Door Sizing CNC Machine, PMSK M5.4

The PMSK M5.4 model is a high-precision CNC machine tool, specifically designed for the automatic sizing and cutting of door sheets on all four sides in a single operation. Equipped with the advanced Pinmai control system and automatic positioning devices, this equipment eliminates the need for manual handling between cuts, ensuring a perfect 90-degree angle and high industrial productivity for furniture and door factories.
Through the partnership with AGS Factory Bridge, the acquisition process becomes streamlined and efficient. We manage the entire import chain, from manufacturer negotiation and quality verification to international transport, customs procedures, and final delivery. By choosing AGS, you benefit from cutting-edge Chinese technology at competitive prices, without the risks and bureaucratic complexities of direct import.

Total Power
29 KW
Traverse Speed
60 m/min
Door Sheet Size
Max. 2800 mm
Machine Weight
3000 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Automatic Positioning System

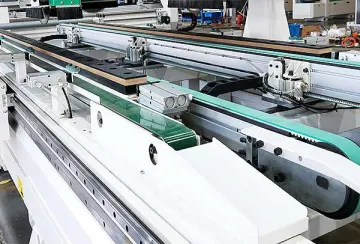

    The machine is equipped with sensors and auxiliary feeding systems that automatically transport and position the door sheet, reducing human error and processing time.

  • High Rigidity Structure

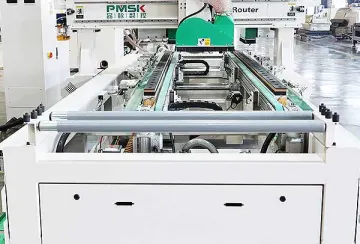

    The robust construction and rack-and-pinion transmission system for the X/Y axes allow for high working speeds without compromising stability or dimensional accuracy.

  • Double Saw Blade Technology

    The configuration with a main and scoring saw blade ensures extremely clean cuts, eliminating the risk of chipping veneer or laminate at the blade exit.

  • Complete AGS Logistics

    We handle import, customs, and delivery directly to your location, eliminating intermediaries and hidden costs for a stress-free purchasing experience.

Detailed Technical Specifications

Parameter Value
Product Model M5.4
Door Sheet Length 2800 mm
Motor Power Small Saw 1.5KW×3, Large Saw 5.5KW×3
Door Sheet Width 500 ~ 1220 mm
Saw Rotation Speed Small Saw 12000 RPM, Large Saw 18000 RPM
Door Sheet Thickness 10 ~ 50 mm
Working Voltage AC380V / 3 Phase / 50Hz
Rapid Traverse Speed 60 m/min
Total Power 29 KW
Maximum Processing Speed 20 m/min

*Technical data may be subject to minor changes depending on the final configuration chosen.
