In Stock Factory Premium Woodworking
CNC Machining Centre for Wooden Doors, PMSK M5.2
Multi-Spindle Configuration (Vertical + Horizontal)
Rapid Traverse Speed 60m/min
Direct Import via AGS Bridge

CNC Machining Centres for Doors and Windows • PMSK

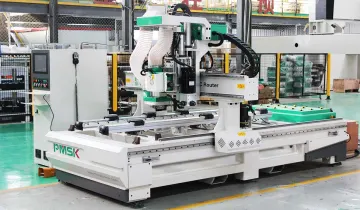

CNC Machining Centre for Wooden Doors, PMSK M5.2

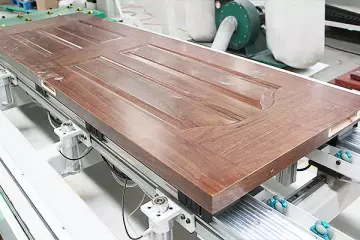

The PMSK M5.2 model represents an advanced CNC machining solution, specially designed for door manufacturers seeking efficiency and precision. Equipped with a hybrid axis system and dual spindles (vertical and horizontal), this machine allows for complex milling, cutting, and finishing operations on door panels up to 2400mm in length, ensuring superior surface quality.

Through partnership with AGS Factory Bridge, you gain direct access to PMSK's cutting-edge technology, benefiting from a simplified purchasing process. We manage the entire logistics flow, from quality control at the source to customs clearance and final delivery, eliminating import-related risks and offering you a major competitive advantage through factory-direct pricing.

Door Panel Length
2400 mm
Main Spindle Power
9KW / 24000RPM
Overall Dimensions
3500x2200x2300 mm
Machine Weight
2600 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Processing Versatility

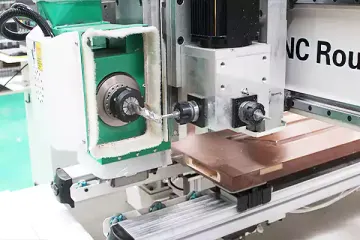

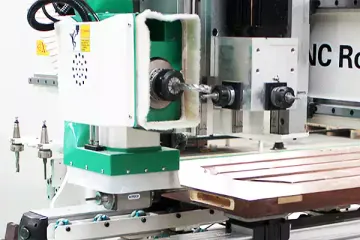

    Equipped with a 9KW vertical spindle and a 7.5KW horizontal spindle, the M5.2 model allows simultaneous or successive execution of details on the door faces and edges without repositioning.

  • Industrial Precision

    The transmission system uses rack and pinion for the X and Y axes and a ball screw for the Z axis, offering an optimal combination of rapid traverse speed and machining accuracy.

  • Energy and Operational Efficiency

    With a total power of 20KW and a 3-position tool change system, the machine is optimised for balanced consumption and reduced downtimes in series production.

  • Complete AGS Logistics

    We handle import, customs, and delivery directly to your location, eliminating intermediaries and hidden costs for a stress-free purchasing experience.

Detailed Technical Specifications

Parameter Value
Product Model M5.2
Door Panel Length 2400mm
Door Panel Width 600~1100mm
Door Panel Thickness 20~80mm
Rapid Traverse Speed 60m/min
Transmission Type X, Y axes on rack and pinion, Z axis on ball screw
Main Spindle Parameters 9KW/24000RPM
Tool Magazine Capacity 3 pieces
Horizontal Spindle 7.5KW/24000RPM
Quadruple Milling Head 2.2KW

*Technical data may be subject to minor changes depending on the final configuration chosen.
