In Stock Factory Precision Woodworking
CNC Nesting Machining Centre with Lamello Jointing Aggregate, PMSK LDA48
Lamello Compatibility
65m/min Speed (Servo)
Direct Import via AGS

CNC Machining Centres / Routers (Nesting) • PMSK

CNC Nesting Machining Centre with Lamello Jointing Aggregate, PMSK LDA48

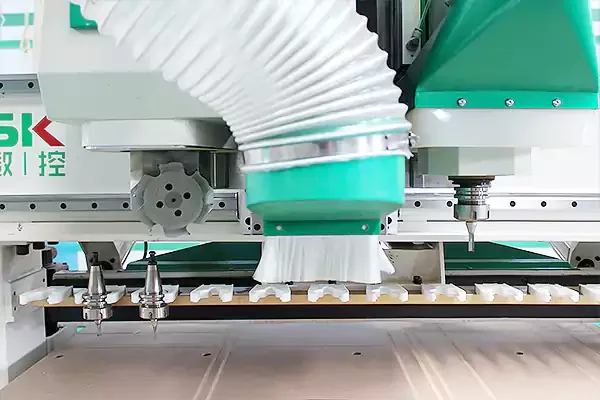

The PMSK LDA48 model represents the top tier in furniture panel processing, specifically designed to integrate modern invisible Lamello connector technology. Equipped with a 9kW milling motor and a 9-axis vertical drilling unit, this machine offers a complete solution for precise cutting, milling, and drilling, enabling the creation of furniture pieces with premium finishes and superior aesthetic assembly.
Through AGS Factory Bridge, acquiring this high-tech equipment becomes a simple and transparent process. We handle technical verification, international logistics, customs procedures, and direct delivery to your production facility, ensuring the best value for money by eliminating traditional local market intermediaries.

Working Dimension
1220×2800 mm
Main Spindle Power
9KW / 24000 RPM
Drilling Capacity
9 vertical axes
Machine Weight
2800 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Optimised for Invisible Joints

    LDA48 is optimised for processing Lamello connectors, offering the precision required for perfect 2-in-1 or 3-in-1 joints, eliminating the need for visible hardware.

  • Multi-Zone Vacuum Fixing

    The multi-zone vacuum absorption work table ensures firm fixing of workpieces of any size, reducing vibrations and machining errors.

  • High-Speed Transmission System

    Utilises X and Y axes on rack and Z axis on ball screw, driven by high-performance servo motors, reaching an operating speed of 65 m/min for maximum productivity.

  • Complete AGS Logistics

    We handle import, customs, and delivery directly to your location, eliminating intermediaries and hidden costs.

Detailed Technical Specifications

Parameter Value
Product Model LDA48
Working Dimensions 1220×2800mm
Rapid Traverse Speed 65m/min
Transmission Type X, Y axes on rack, Z axis on ball screw
Drive System Servo motor
Main Spindle Parameters 9KW/24000RPM
Drilling Unit Parameters 9 vertical axes
Table Structure Multi-zone vacuum absorption table
Working Air Pressure ≥ 6.5Kgf/cm
Working Voltage AC380/3PH/50Hz

*Technical data may be subject to minor changes depending on the final configuration chosen.
