PMSK PE-668J-2 Automatic Edge Banding Machine with Dual Adhesive Tank
Dual Adhesive System
Feed Speed 23m/min
Direct Import via AGS Bridge

Edge banding machines • PMSK

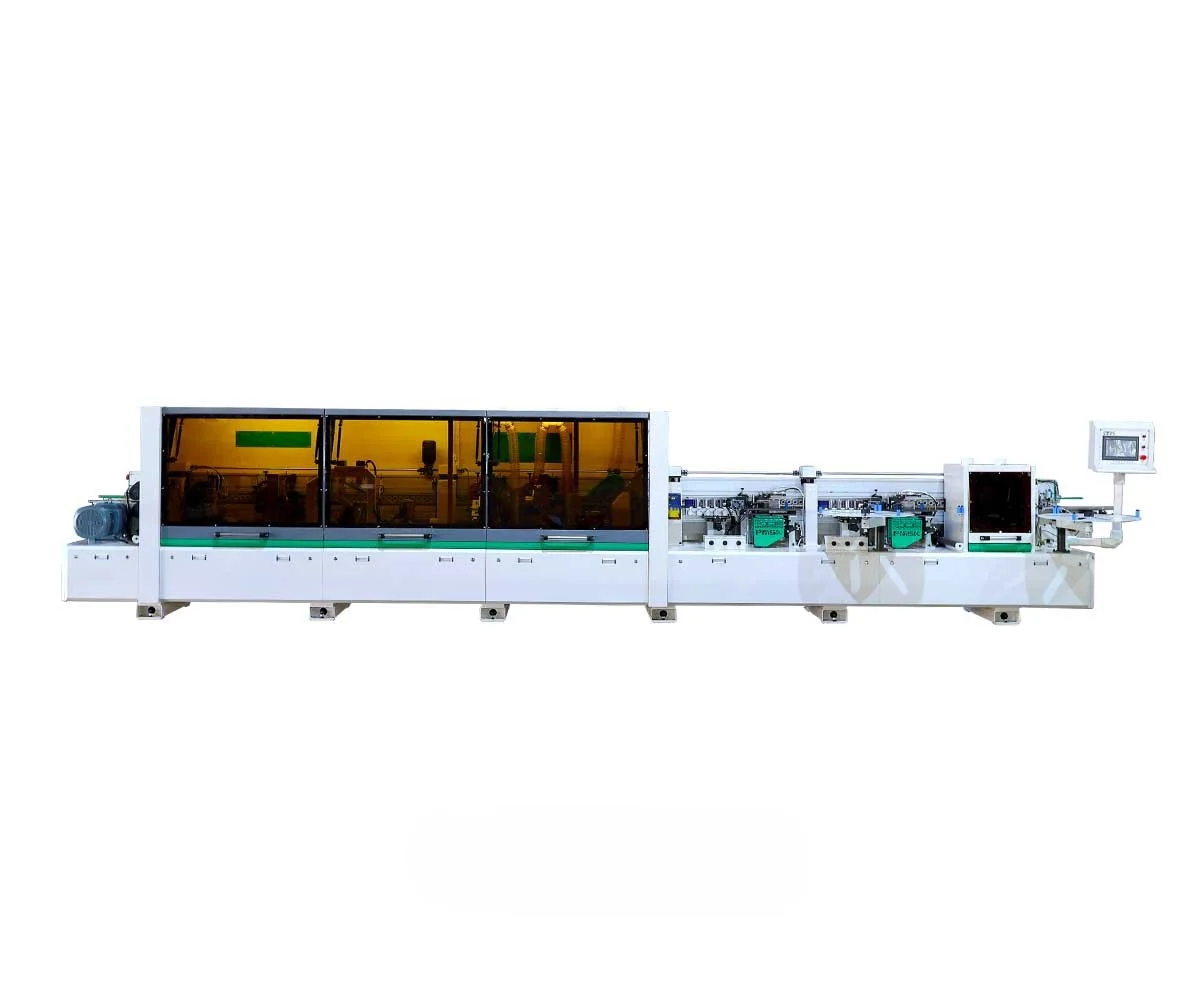

PMSK PE-668J-2 Automatic Edge Banding Machine with Dual Adhesive Tank

The PMSK PE-668J-2 model represents a high-performance industrial solution for modern furniture factories, featuring an innovative dual adhesive tank system. This configuration allows for rapid transitions between different adhesive colours or types, ensuring impeccable finishing and superior productivity. Designed for intensive work cycles, the machine guarantees millimetre precision and unparalleled structural stability in the edge banding process.

Through the partnership with AGS Factory Bridge, acquiring this equipment becomes simple and efficient. We manage the entire import process, from manufacturer negotiation and in-factory quality control to international shipping and complex customs procedures. By choosing AGS, you eliminate local intermediaries and benefit from cutting-edge technology at direct manufacturer prices, with secure delivery to your location.

Total Power
20 Kw
Feed Speed
0-23 m/min
Panel Thickness
10-60 mm
Machine Weight
3100 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Efficiency through Dual Adhesion

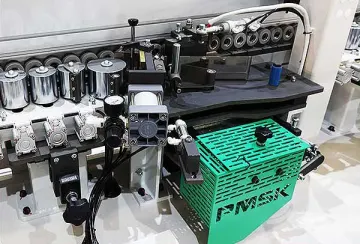

    The Dual Glue Pot configuration allows the use of two different types of adhesive without needing to clean the system, dramatically reducing downtime and optimising the production flow.

  • Robust Heavy-Duty Construction

    With a total weight of 3100 kg, the machine frame is designed to absorb vibrations, maintaining precision settings long-term, even under continuous 3-shift usage conditions.

  • High Industrial Precision

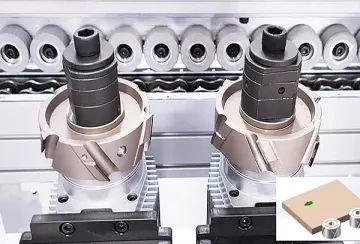

    The finishing systems, including trimming, milling, and de-burring units, are digitally controlled to ensure perfect edge application on panels with thicknesses between 10 and 60 mm.

  • Complete AGS Logistics

    We handle import, customs, and delivery directly to your location, eliminating intermediaries and hidden costs.

Detailed Technical Specifications

Parameter Value
Model PE-668J-2
Edge band thickness 0.4~3mm
Edge band width 12~65mm
Panel thickness 10~60mm
Panel width ≥ 60mm
Feed speed 0~23m/min
Working air pressure ≥ 0.7Mpa
Suction port diameter φ100mm × 5
Total power 20Kw
Equipment weight 3100Kg

*Technical data may be subject to minor changes depending on the final configuration chosen.
