In Stock Factory Heavy Duty / Laser & PUR
Automatic Edge Bander Machine with Laser and PUR Technology, PMSK PE-889J-UL
Dual Laser & PUR System
17 Functional Units
Direct Factory Import

Edge banding machines • PMSK

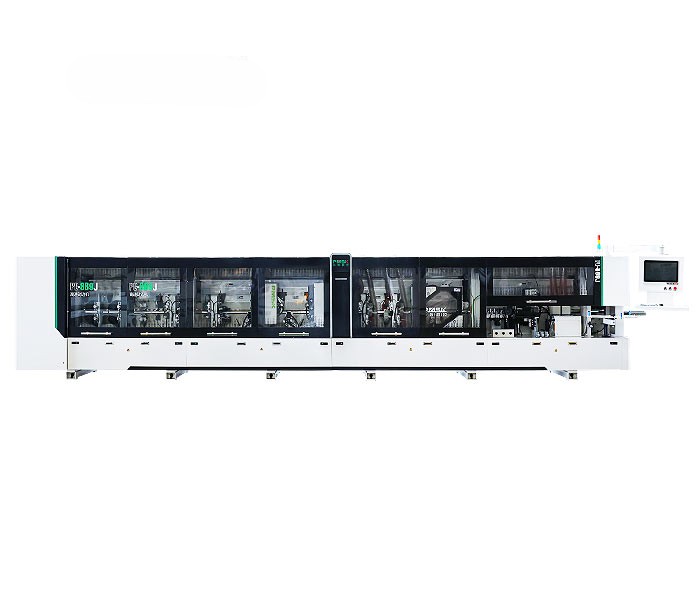

Automatic Edge Bander Machine with Laser and PUR Technology, PMSK PE-889J-UL

The PMSK PE-889J-UL model represents excellence in woodworking engineering, being a hybrid solution that integrates both a PUR adhesive application unit and revolutionary Laser technology. This machine is designed for premium furniture manufacturers aiming for an invisible gluing line ("zero-joint") and superior resistance to humidity and heat, all within a high-speed production flow of up to 26 m/min.

Purchasing this equipment through AGS Factory Bridge offers you a decisive competitive advantage in the local market. We facilitate the entire acquisition process directly from the PMSK manufacturer, managing technical inspection, secure sea freight, and complex customs clearance procedures, delivering the equipment directly to your factory with no hidden costs or logistical headaches.

Edge Thickness
0.4 - 3 mm
Feed Speed
0 - 26 m/min
Gluing Technology
Laser + PUR
Machine Weight
5500 Kg

Estimated Price

On request
MOQ: 1 Pcs

Product does not include Transport, Customs and VAT

Strong Points

  • Zero-Joint Laser Technology

    The integrated Laser device melts the functional layer of the special edge, achieving molecular fusion with the panel, which eliminates the visible glue line and elevates the aesthetic standard of premium furniture.

  • Full-Option PUR Application System

    The PUR (Polyurethane) unit offers superior adhesion and total resistance to steam and high temperatures, being indispensable for high-quality kitchen and bathroom furniture.

  • Full-Option Configuration

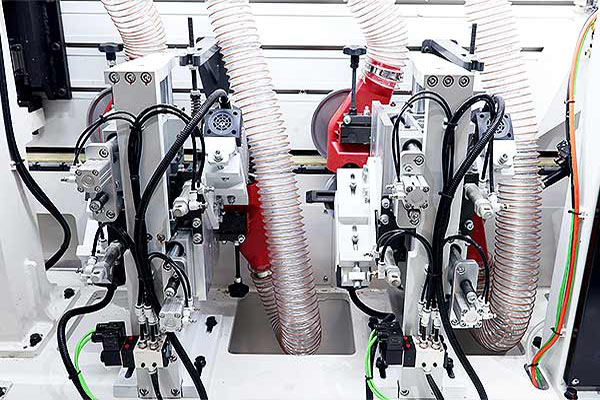

    The machinery is equipped with 17 stations, including pre-milling, double-rail end trimming, corner rounding with 4 heads (tracking), and multiple finishing stations (flexible scraping, polishing), guaranteeing a flawless finished product.

  • Complete AGS Logistics

    We handle import, customs, and delivery directly to your location, eliminating intermediaries and hidden costs, offering you a direct purchase price from the manufacturer.

Detailed Technical Specifications

Parameter Value
Product Model PE-889J-UL
Edge Thickness 0.4 ~ 3 mm
Edge Width 12 ~ 65 mm
Panel Thickness 10 ~ 60 mm
Panel Width ≥ 80 mm
Feed Speed 0 ~ 26 m/min
Working Air Pressure ≥ 0.7 Mpa
Dust Extraction Port Diameter φ100 mm × 8
Total Power 26 Kw
Equipment Weight 5500 Kg

*Technical data may be subject to minor changes depending on the final configuration chosen.
